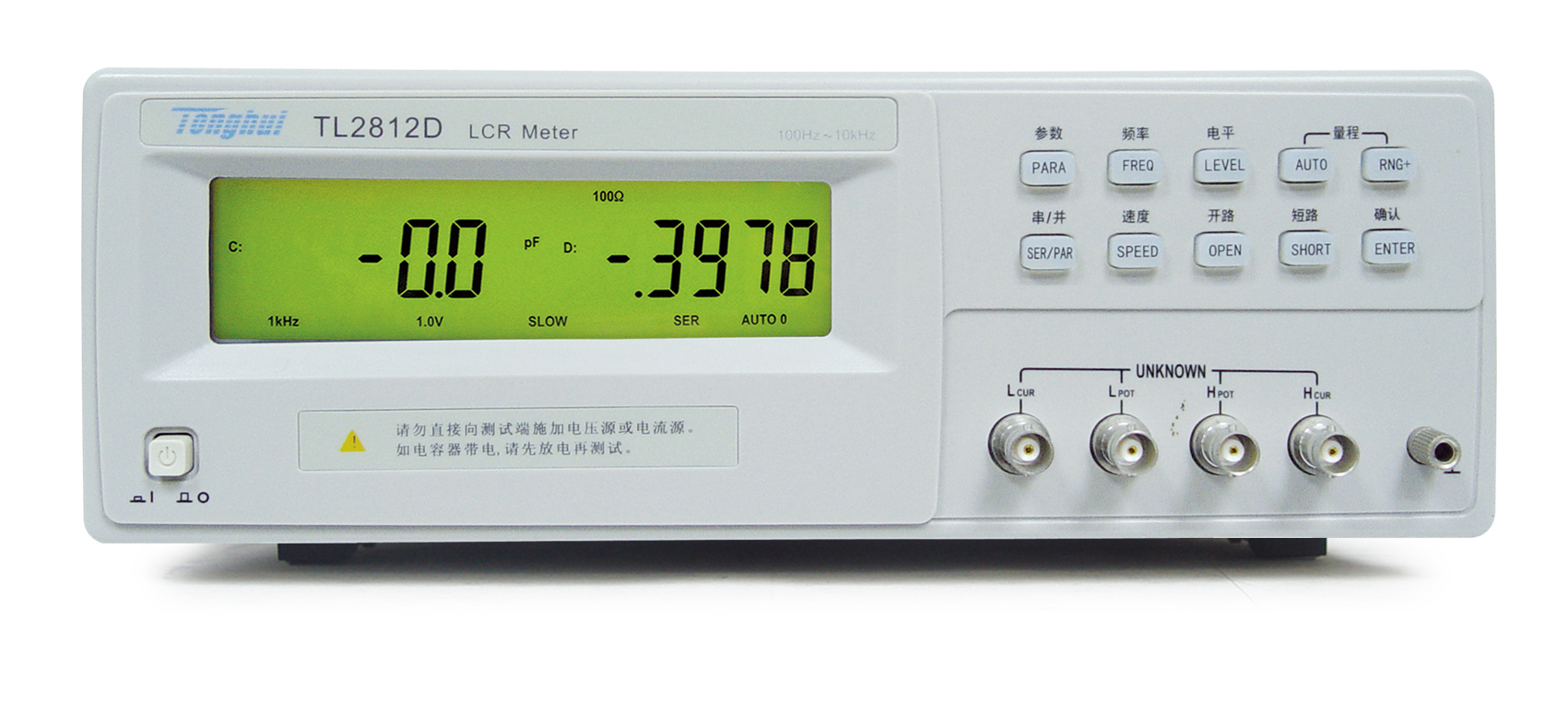

| LCR digital bridge | |||
| Detection range: | Resistance | Capacitance | Inductance | |
| 0.0001Ω-99.999Ω | 0.01PF-99999uF | 0.01uH-9999.9H | ||

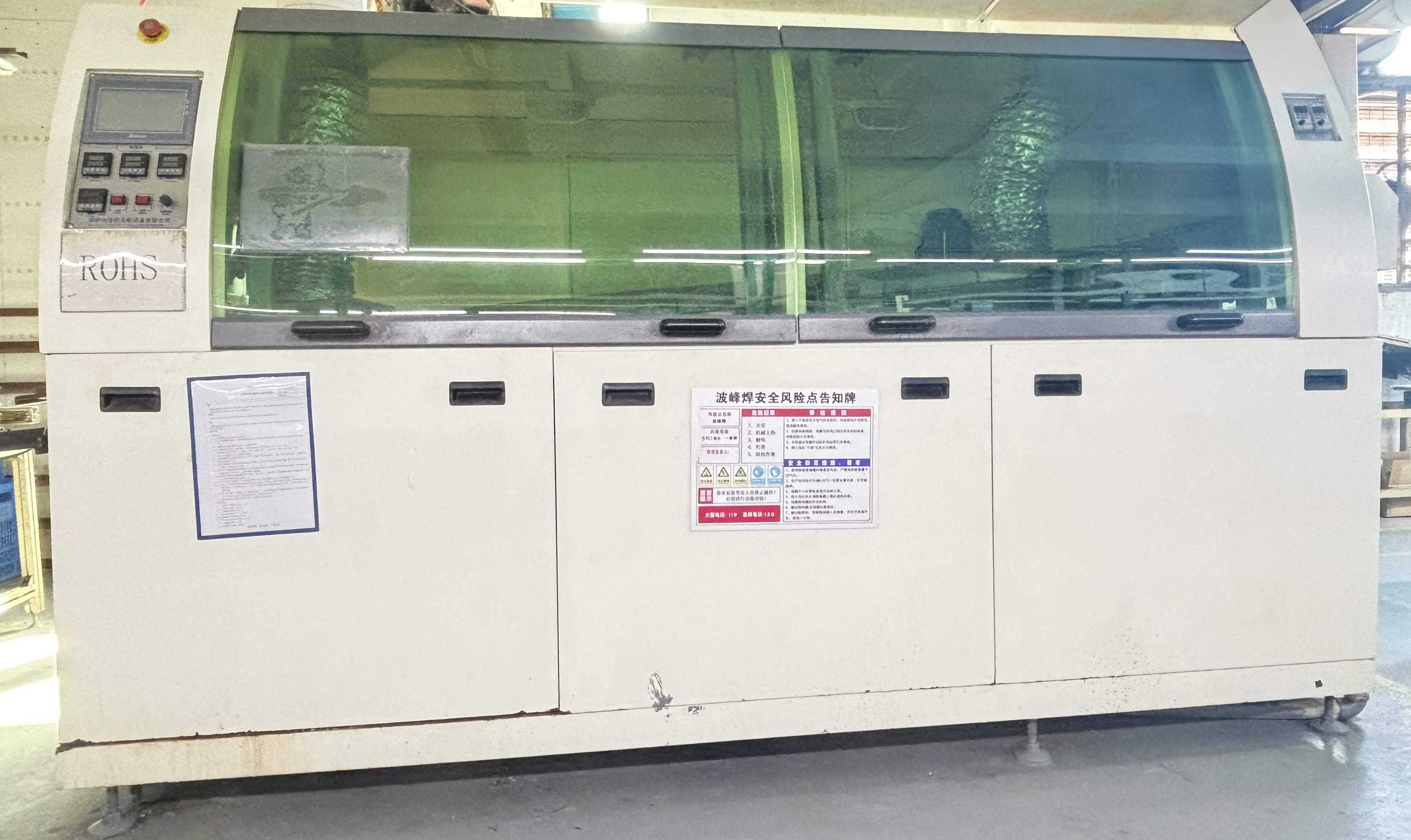

| Lead-free wave soldering | ||||
| Conveying speed | Preheating temperature: | Preheating time | Tin furnace temperature | Welding time | |
| 0.8m/mim~1.8m/min | 80℃~150℃ | 40S- 100S | 250℃~280℃ | 2S-8S | |
| Conveyor belt angle | Air pressure setting | Collet inclination angle | Flux spray pressure | Needle valve pressure | |
| 30-60° | 4-7kgf/cm2 | 4~6° | 2~3Psi | 2~4Psi | |

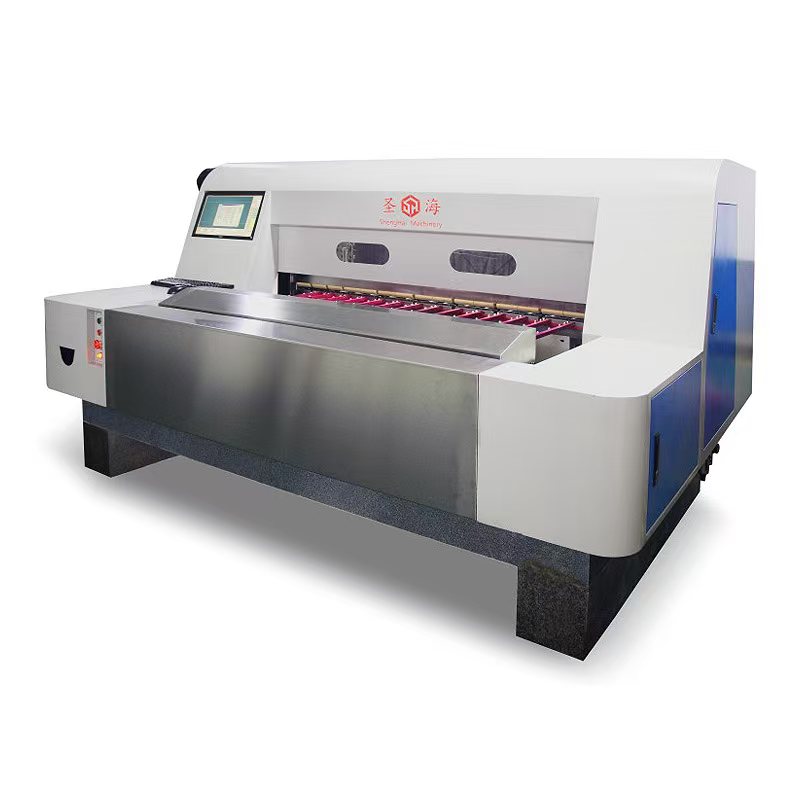

 | CNC V-CUT machine | ||||
Cutting angle | Cutting depth and width | Positioning accuracy | Cutting accuracy | Cutting speed range | |
30°, 45°, 60° | 0.5 mm to 3 mm V-Cut width is between 0.5 mm and 2 mm. | between ±0.05 mm and ±0.1 mm | between ±0.1 mm and ±0.2 mm | 5 mm/s to 50 mm/s | |
  | Dongtai fully automatic drilling machine | |||
maximum PCB size | Drilling speed | drilling machine supports a minimum hole diameter | processing hole depth | |
510mm * 460mm or 550mm * 500mm | 2000 holes/hour or higher | 0.2mm or 0.3mm and a maximum hole diameter of 6mm | 1-10mm, and the hole position error is usually ±0.02mm | |
