Number of layers: double-layer board
Board size: about 200mm × 80mm
Surface treatment: hot air leveling (HASL)
Base material: FR-4
Assembly method: SMT patch + DIP plug-in

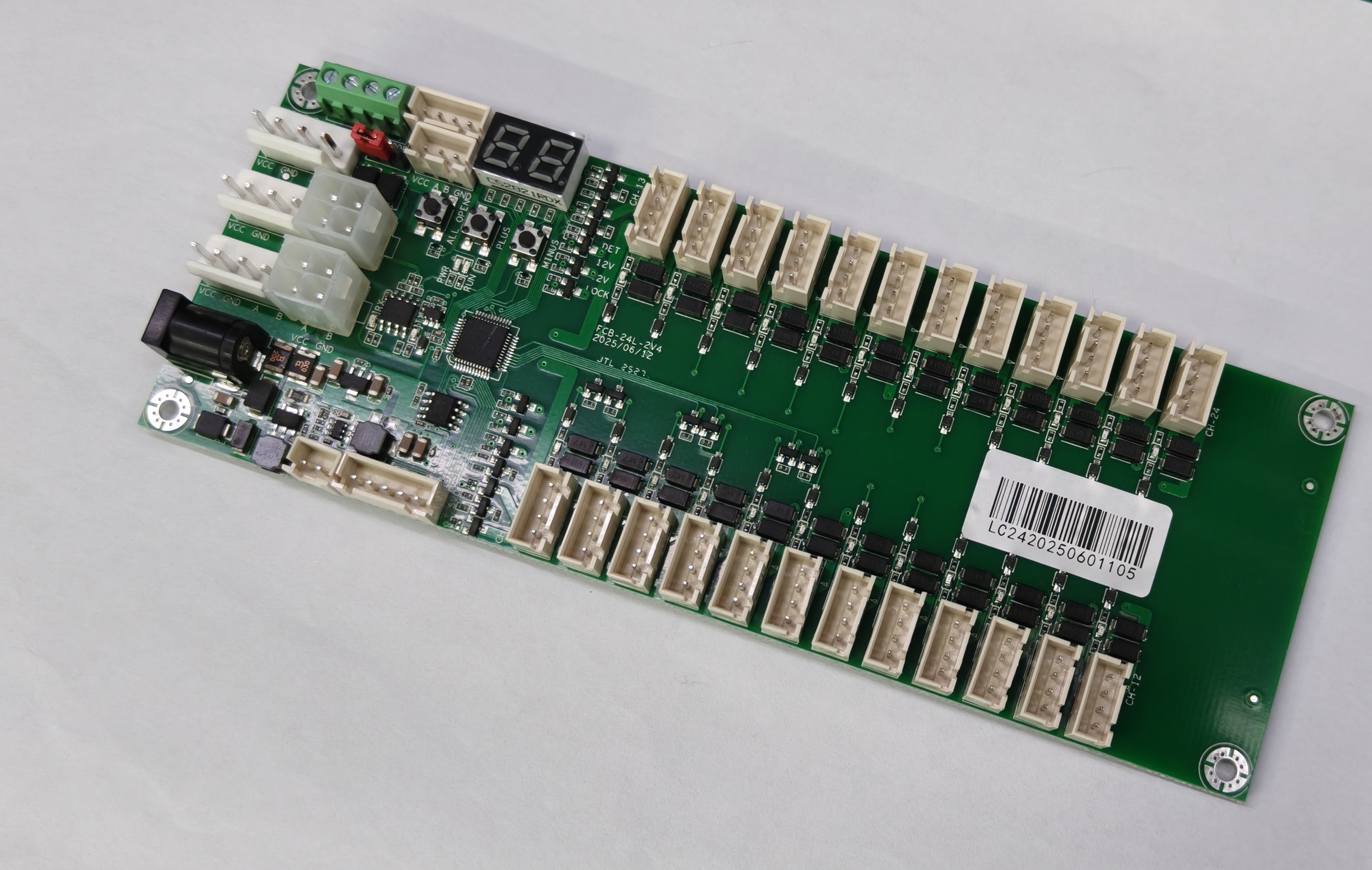

Main features: This circuit board is mainly used for power management system, supports multi-channel voltage output, and is suitable for intelligent power distribution and monitoring system.
I. Product features:
Power output interface:
The board is equipped with multiple power output interfaces (12V, 24V, 5V, etc.), each power supply can be connected through an external interface, suitable for powering multiple external devices.
Multi-channel voltage monitoring function:
The board integrates voltage monitoring circuit, which can display the voltage data of each channel in real time to ensure the stability of power output.
Main control chip integration:
The high-performance control chip is used for power management, with real-time monitoring, data feedback and protection functions.
Power input port:
Equipped with DC power input port, supports multiple voltage inputs (such as 12V, 24V, etc.), to meet different power configuration requirements.
Modular design:
The whole board contains multiple output modules, which can work independently or be used in an integrated manner in multiple application scenarios.
II. Application scenarios:
Power management systems, especially intelligent power distribution and monitoring applications.
Power management modules in intelligent hardware devices.
Multi-voltage output power supply systems, suitable for automation, home appliances, etc.
High-precision voltage monitoring systems, such as electronic instruments, measuring equipment, etc.
